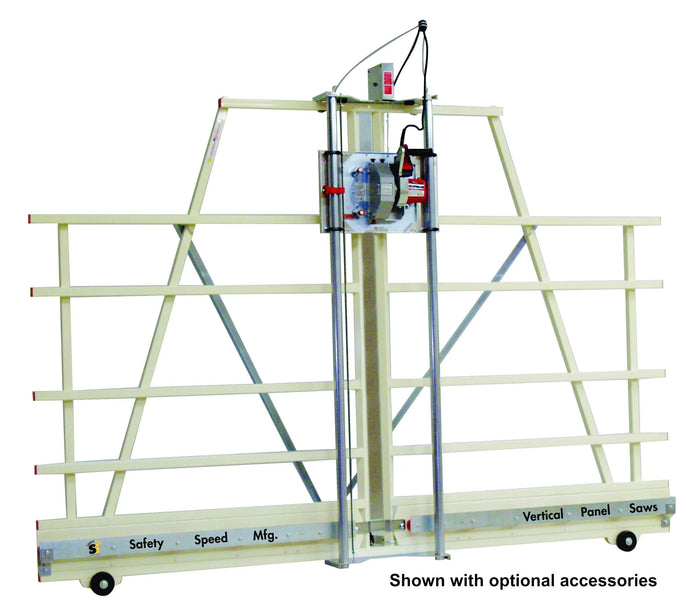

Safety Speed H5 Panel Saw


SKU: SAFH5 Safety Speed

H5 panel saws are ideally suited for customers looking for a full sized vertical panel saw at a very affordable price. This saw has a crosscutting height of 64″ while delivering an accuracy of 1/32″ straight and square. With 3 1/4 Hp industrial motors, these versatile saws are used in a variety of panel cutting operations.

Standard Equipment:

  •  3 ¼ Hp, 15 amp industrial duty saw motor.
  • Zinc plated 1 ¾”steel guide tubes.
  • 4 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Injection-molded plastic material rollers.
  • Spring loaded counter balance system.
  • Integrated dust collection bonnet.
  • TUV certified to UL/CSA standards

 Max. Cross Cut 64" / 1575mm
Max. Rip Cut Unlimited
Max. Cut Thickness 1 3/4" / 455mm
Cut Accuracy, Straight and Square 1/32" 0.8mm
Saw Blade Diameter 8"/ 210mm
Motor 15 amp, 120V, 220V
Frame Length 120" / 3050mm
