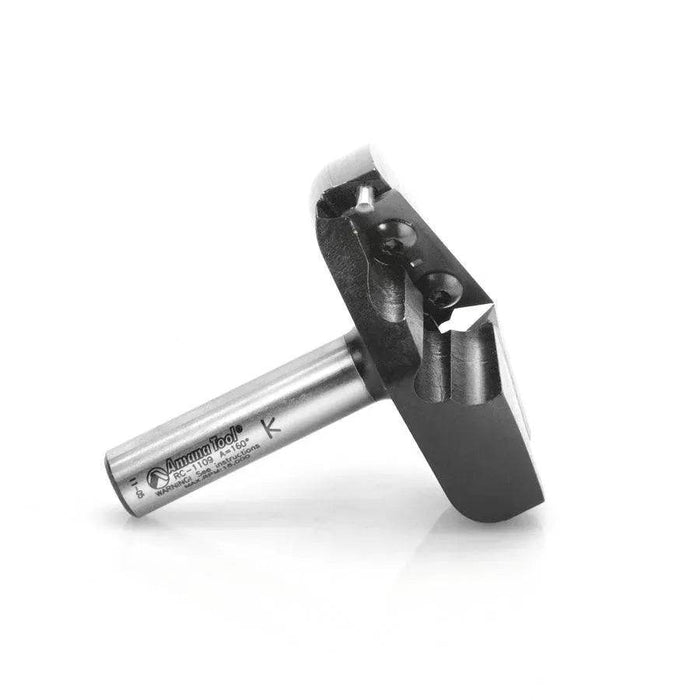

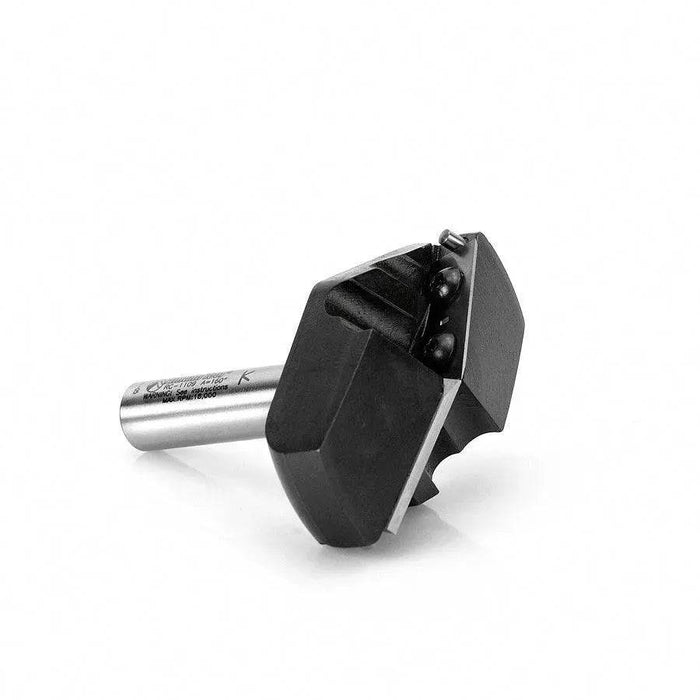

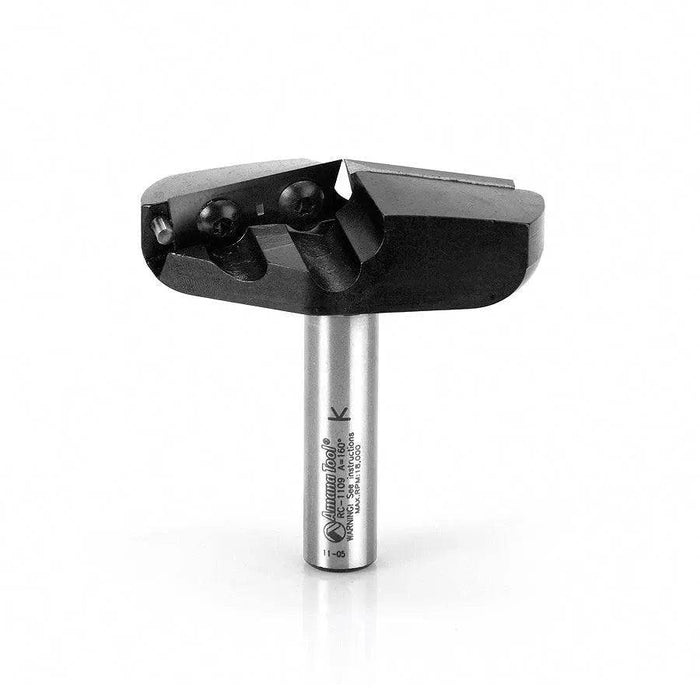

Amana RC-1109 Insert V-Groove 160 Deg x 13/64 x 1/2 Inch Shank CNC

$230.00

SKU: RC-1109 Amana Tools

The innovative CNC tool design uses the highest grade carbide insert knife. These industrial V-Groove insert router bits were specially designed for applications including:

  • Miter folds - "create the perfect joint"

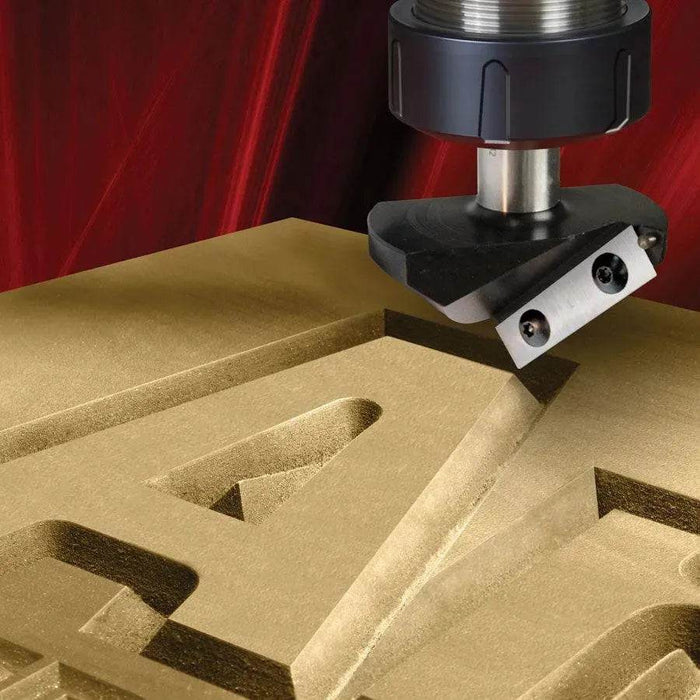

  • Signmaking and lettering

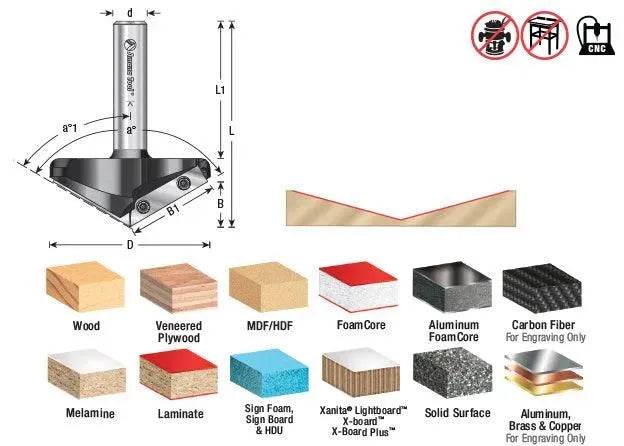

Excellent for cutting:

  • Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
    (Engraving Only)
  • Acrylic/Plastic
  • Composites
  • Composite Decking
  • Epoxy (Epoxy Resins)
  • Foam
  • High-Density Polyethylene (HDPE)
  • Laminate
  • Melamine
  • MDF/HDF
  • PVC
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board*
  • 20lbs High-Density Urethane

*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.

Advantages of Insert Tooling:

  • Long-lasting insert knives provide superior smooth quality cuts every time
  • Quick and precise replacements of dull knives
  • Due to the insert,1 accuracy tool life is extended
  • Insert tooling allows for harder grades of carbide
  • Special carbide grades for special applications
  • Cost-effective solution compared to replacing brazed router bits

A secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.
