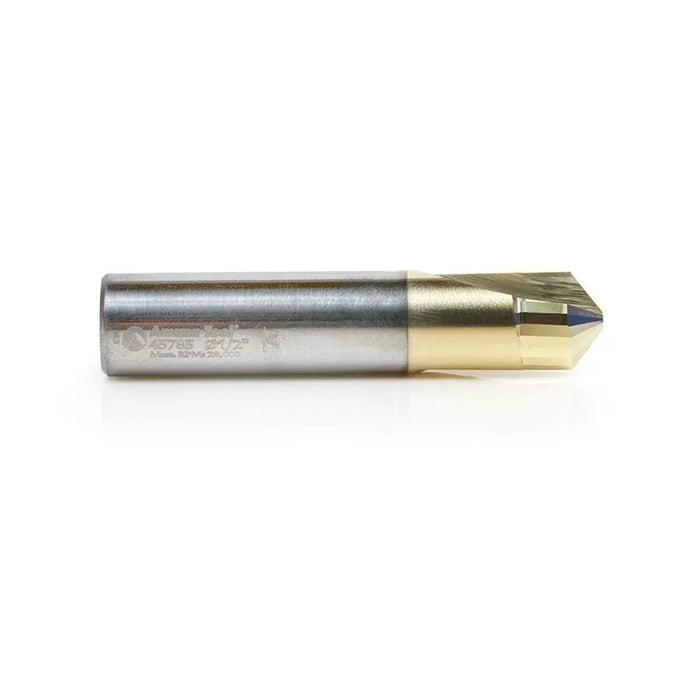

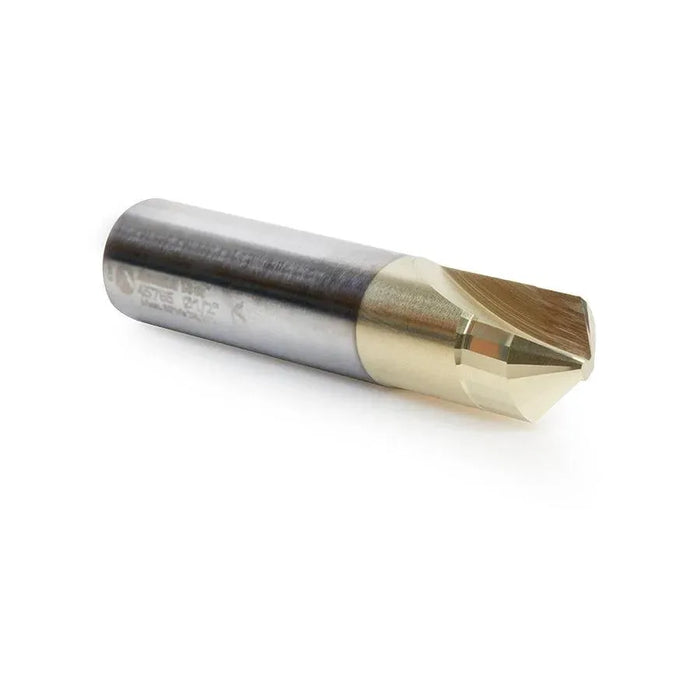

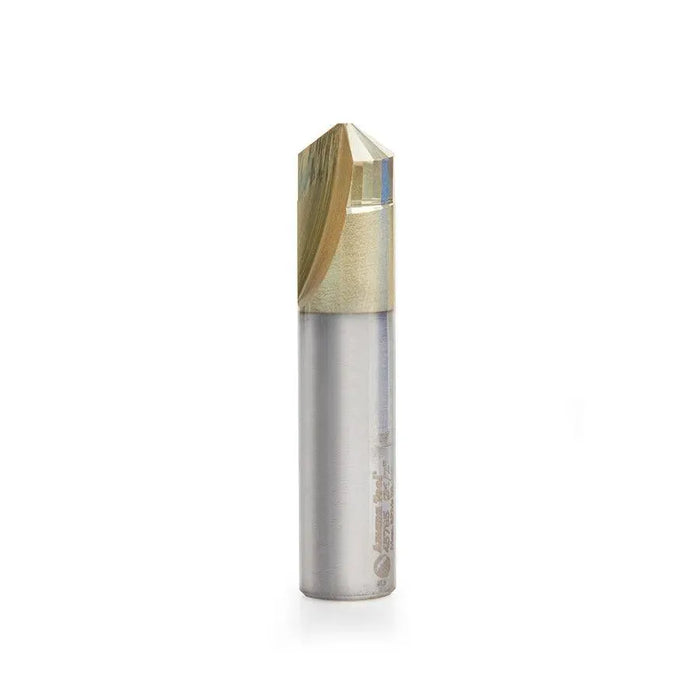

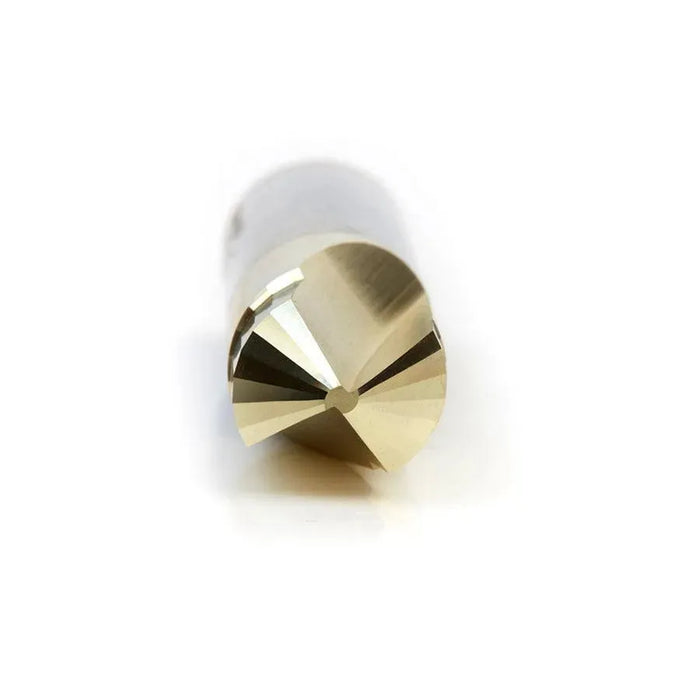

Amana 45785 Carbide V-Groove 108 Deg. 0.090 Inch Tip Width x 5/32 x 1/2 Dia. x 1/2 Inch Shank ZrN Coated Router Bit
$112.20
SKU: 45785 Amana Tool
The carbide cutting tip is brazed to a steel shank specially designed to cut grooves in composite building materials. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand. Special Amana-grade carbide provides much longer tool life especially compared to carbide tipped tooling.
C
Designed for cutting and scoring aluminum sandwich materials including:
- Acetate
- Acrylonitrile-Butadiene-Styrene (ABS)
- Aluminum, Brass, Bronze, Clay, Zinc & Wood Composite Panels
- Aluminum 5052

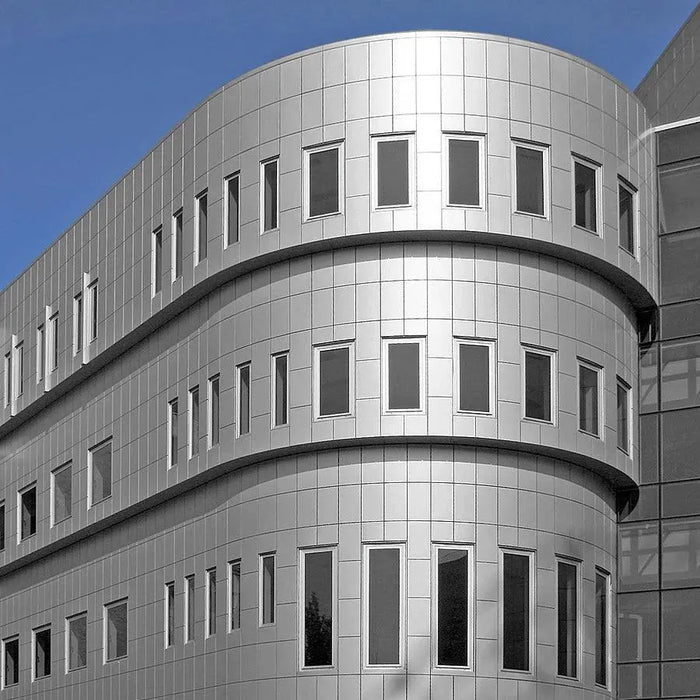

- Aluminum Composite Materials (ACM)
- Aluminum Composite Panel (ACP)*
- ALPOLIC® Copper Composite Material (CCM)
- Alucobond®
- Alupanel®
- Bakelite
- Dibond®
- Durabond**
- e-panel™
- Etalbond®
- Lexan™
- Nylon
- PE and FR Cores
- Phenolics
- Plastic/Acrylic
- Plexiglas®
- PVC
- Stainless Steel Composite Material (SCM)
- Titanium Composite Material (TCM)
- Wood
| Angle (a°) | 108° |
|---|---|
| a1° | 36° |
| Diameter (D) | 1/2 |
| D1 | 0.090" |
| Cutting Height (B) | 5/32 |
| B1 | 3/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/8 |
| Max RPM | 28,000 |
| Type | ZrN Coated V-Groove |
| Flutes | 2 |
